How to run parallel steps with fan-out and merge

1. 1How It Works

   A playbook is a directed graph of steps. Every step so far in a linear or simple-branch playbook has exactly one path forward. A fan_out node changes that: it has multiple outgoing edges that all execute concurrently, each leading to its own branch of one or more steps. A merge node is the corresponding rejoin point. It waits for every branch reaching it to complete, then combines their outputs into a single result that continues downstream.

   Concretely, the executor treats a fan_out node as a signal to schedule all of its downstream branches as concurrent tasks in ValGuard's orchestration engine, each with a copy of the input state at the moment of the fan-out. Each branch runs its own steps, including validation, completely independently. A validation failure in one branch does not automatically cancel other branches; whether it should route the whole playbook to a failure path is a decision you make at the merge node using the same route conditions (on_validation_block, on_rule_failed, etc.) available everywhere else in the graph.

   Concurrency is bounded server-side by a configurable maximum (FanOutMaxParallel in the executor). This exists specifically so a single playbook execution can't accidentally spawn an unbounded number of simultaneous upstream LLM calls, which would be both a cost risk and a fairness problem for other tenants sharing the engine.

2. 2Prerequisites

   • Familiarity with building linear playbooks and simple branches (see the fallback-logic and chain-agents tutorials)
   • A concrete use case with genuinely independent steps. The example we'll use throughout is a three-way document match: an invoice, a purchase order, and a fraud-pattern check on vendor history, all extracted independently before being cross-checked
   • Access to the Map view in the playbook editor (fan-out graphs are considerably easier to build and read in Map view than in the linear Storyboard view)
   • An understanding of your cost tolerance. Fan-out multiplies the number of concurrent LLM calls per execution, which multiplies cost and rate-limit exposure per request

3. 3Step-by-Step Setup

   Step 1: Confirm your steps are actually independent

   Before reaching for fan-out, check one thing: does any branch need another branch's output as input? If yes, that's a sequential dependency, not a parallel opportunity. Model it as a normal chain instead. Fan-out is for steps that only depend on the original playbook input, not on each other.

   In our example: extracting fields from an invoice PDF, extracting fields from a purchase order PDF, and checking a vendor's fraud-pattern history are all independent lookups against the same original request payload. None needs the others' output to run.

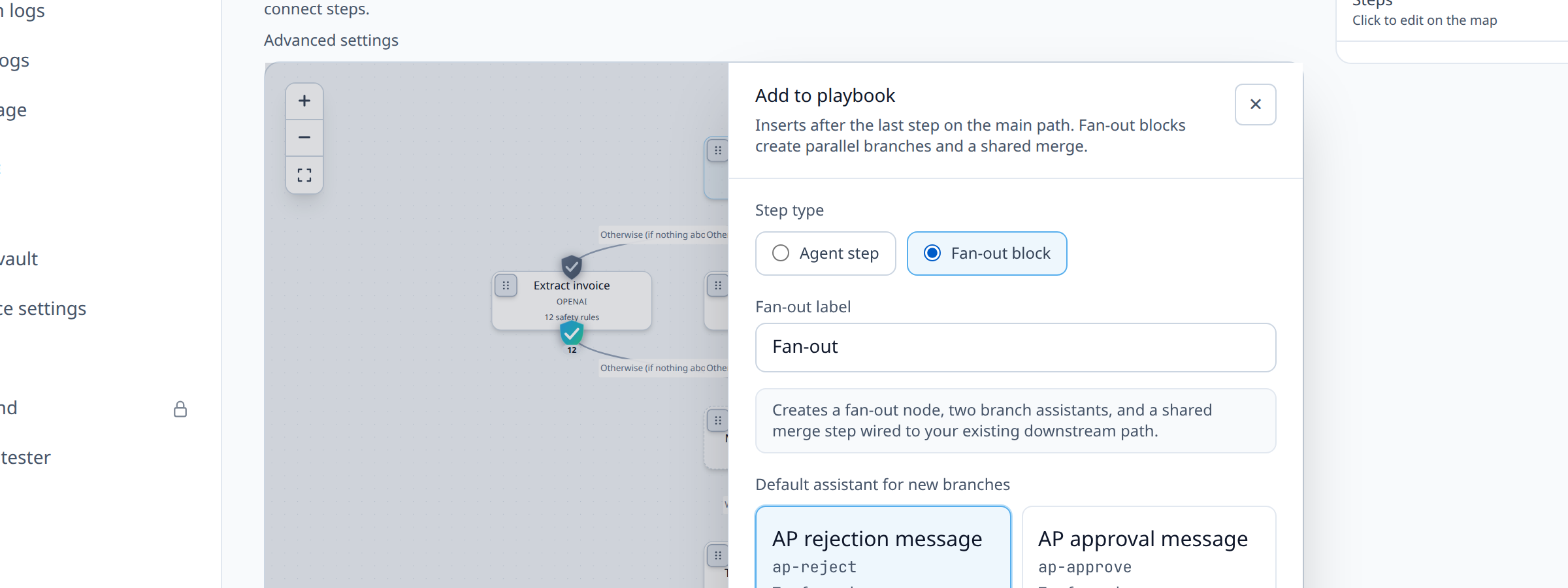

   Step 2: Open the playbook in Map view and add a fan-out node



   Drag a Fan-out block from + Add step on the Map (or + Add parallel block in Storyboard) after your entry step, or use a published template such as vendor-invoice-three-way-match or parallel-kyc-document-bundle.

   Marketplace fan-out playbooks (7): vendor-invoice-three-way-match, parallel-kyc-document-bundle, parallel-incident-enrichment, multi-source-research-fanout, parallel-refund-review, parallel-ticket-enrichment, parallel-extract-repair-fallback.

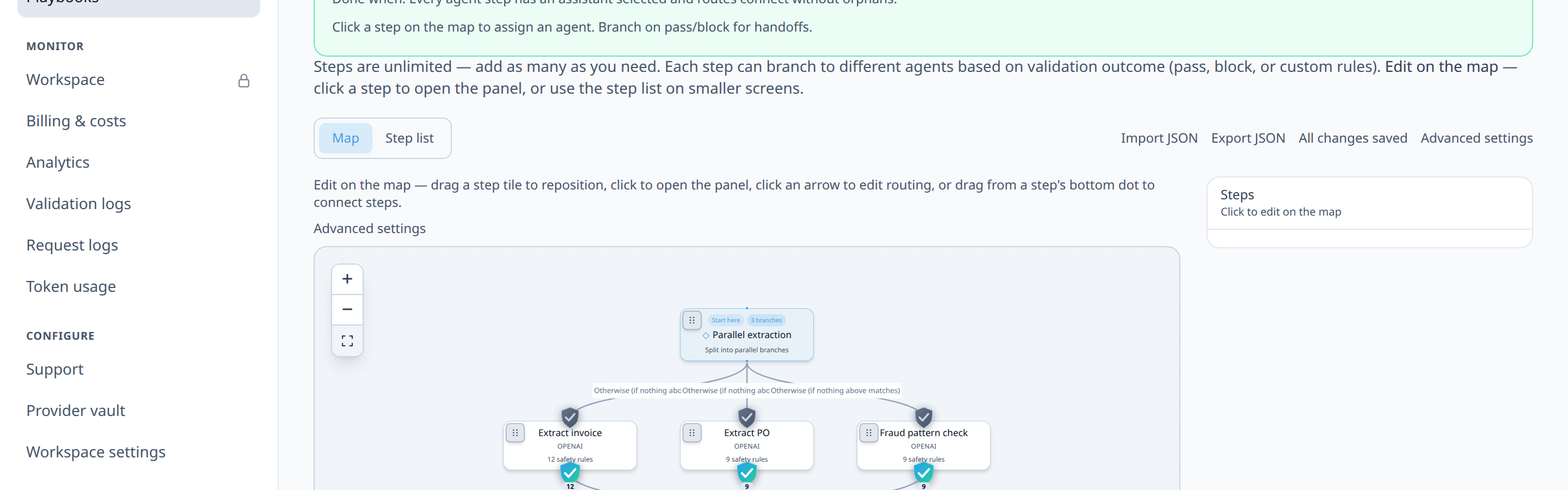

   Step 3: Add one branch per independent task

   For each parallel task, add a step (or short chain of steps) connected from the fan-out node. In our example: extract_invoice, extract_purchase_order, and fraud_pattern_check, each pointing at its own agent.

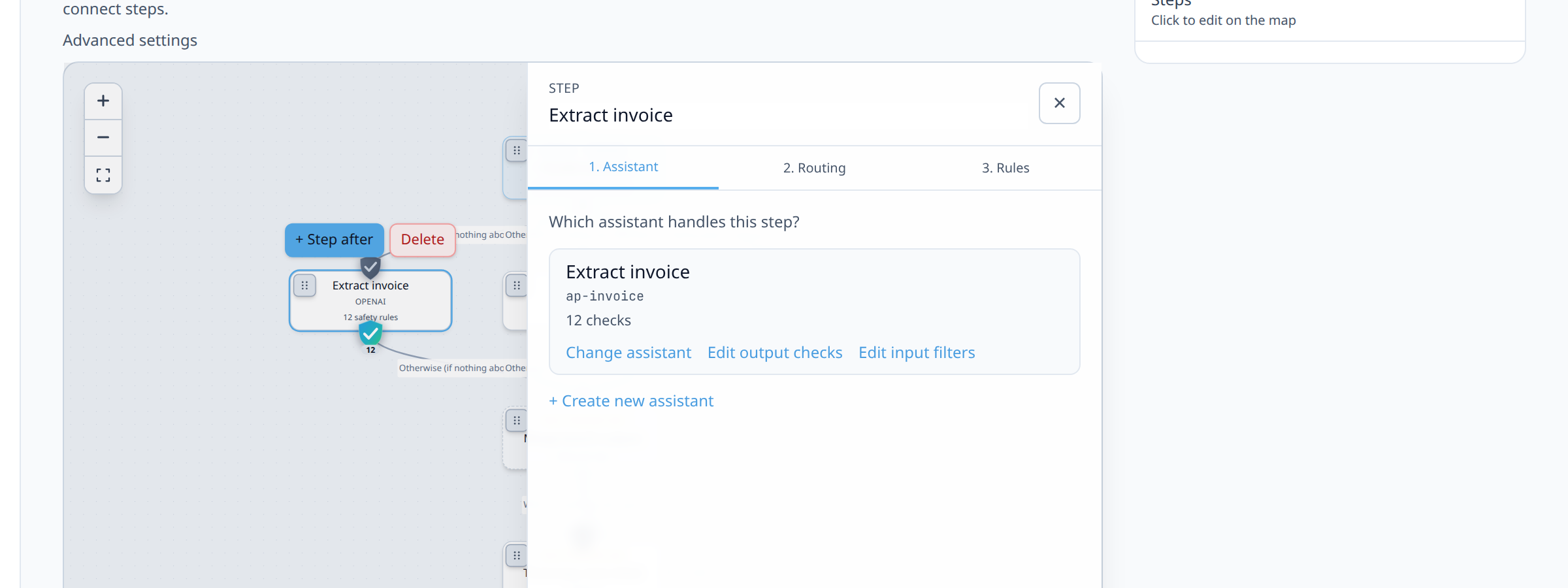

   Step 4: Set the input mode for each branch

   Each branch step needs an input_mode. Since all three branches are working from the same original request rather than from each other's output, set pass_through on all three. Each branch receives the playbook's original input independently.



   Step 5: Add a merge node where the branches reconverge

   Drag a merge node onto the canvas and connect all three branches into it.



   Step 6: Add the decision step after the merge

   Add your cross-checking step immediately after the merge node. This is the step that actually looks at all branch outputs together. In our example, attach validators branch_outputs_present and cross_branch_field_match on the post-merge agent (see the invoice_three_way_cross_check_agent template), comparing invoice gross_amount against PO total_amount and requiring all branch payloads in the merged json_object.

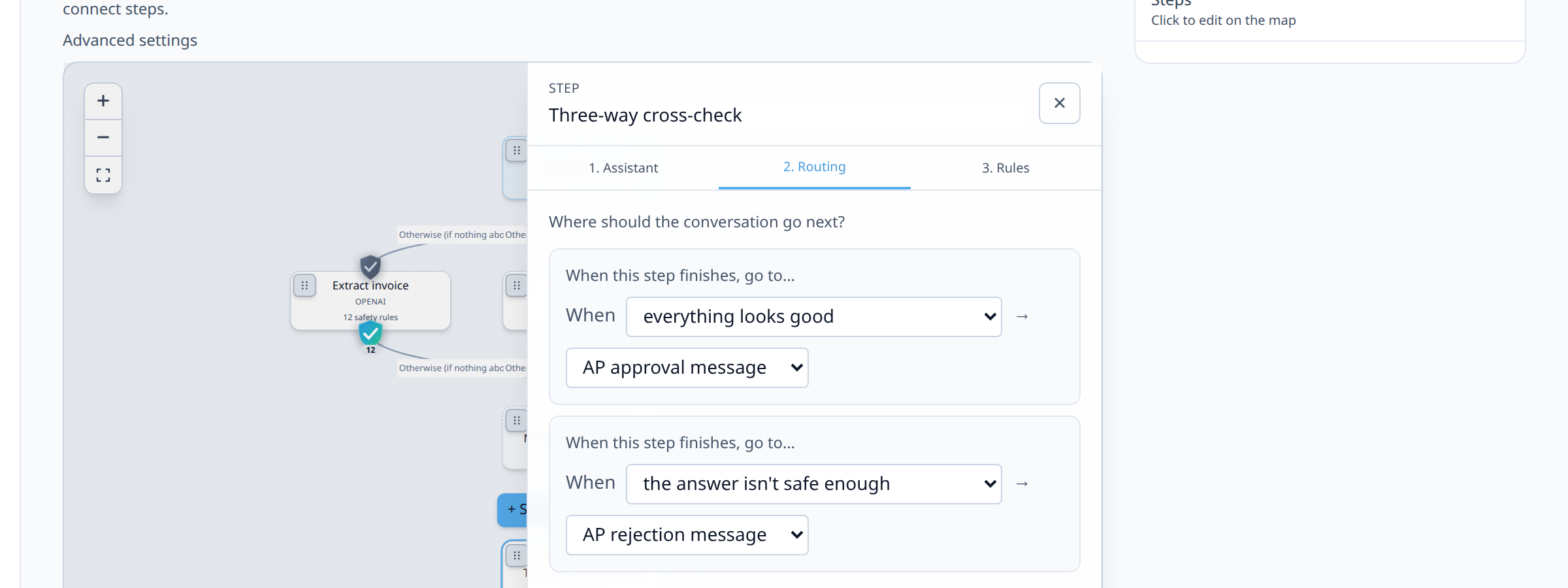

   Step 7: Configure routes out of the decision step

   Same route conditions as any other step: on_validation_pass to an approval step, on_validation_block to a review-handoff step. For partial success (e.g. 2 of 3 branches pass), set merge_policy: min_passing_branches on the merge step and add an on_partial_pass route from merge. The branch_pass_count validator can enforce minimum passing branches on the post-merge agent. See also fallback-logic for partial-failure patterns.



   Step 8: Set a sane concurrency expectation

   Check your plan tier's fan_out_max_parallel entitlement, the concurrent branch cap enforced per fan-out node:

   Plan	Max parallel branches
   Free	3
   Developer	5
   Growth	8
   Production	12
   Enterprise	Unlimited (0 = no plan cap; still bounded by platform env limits)

   If you're fanning out into more branches than your limit, the extra branches queue rather than running instantly in parallel, which defeats some of the latency benefit. Keep the branch count per fan-out modest (single digits) rather than trying to parallelize dozens of tiny sub-tasks.

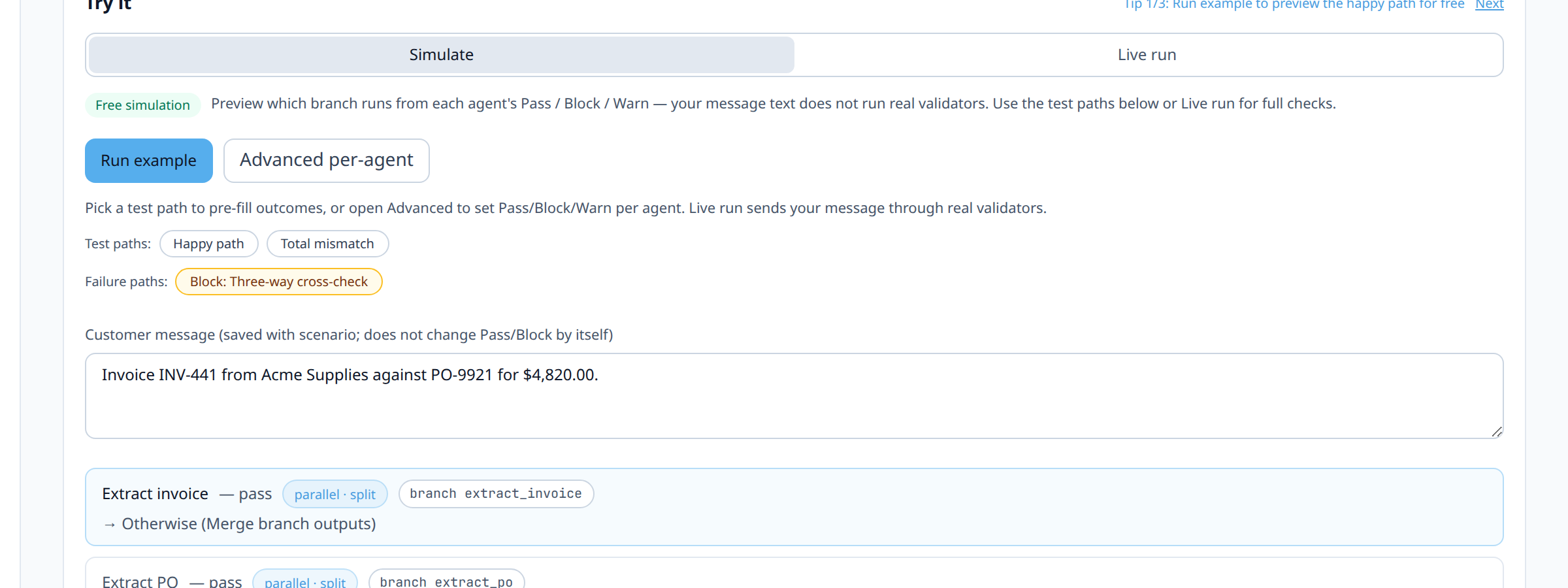

   Step 9: Test in Simulate before publishing

   Use the Try it → Simulate panel to declare a Pass/Block outcome for each branch and confirm the timeline tags all three branch steps with the same parallel_group badge and that the merge step correctly combines their declared outputs per its merge_mode. Simulate is a client-side routing preview. It doesn't call any agent, so it can confirm the graph shape fans out and rejoins correctly, but it can't demonstrate actual concurrent timing (there's nothing running concurrently to time). For that, run one real request through Live and check Dashboard → Orchestration (analytics panel at the top of the playbooks list, or per-playbook when a flow is selected), which reports per-step latency grouped by parallel_group. A genuinely parallel fan-out shows each branch's latency independently, with the merge step's wall-clock time close to the slowest branch rather than the sum of all of them.

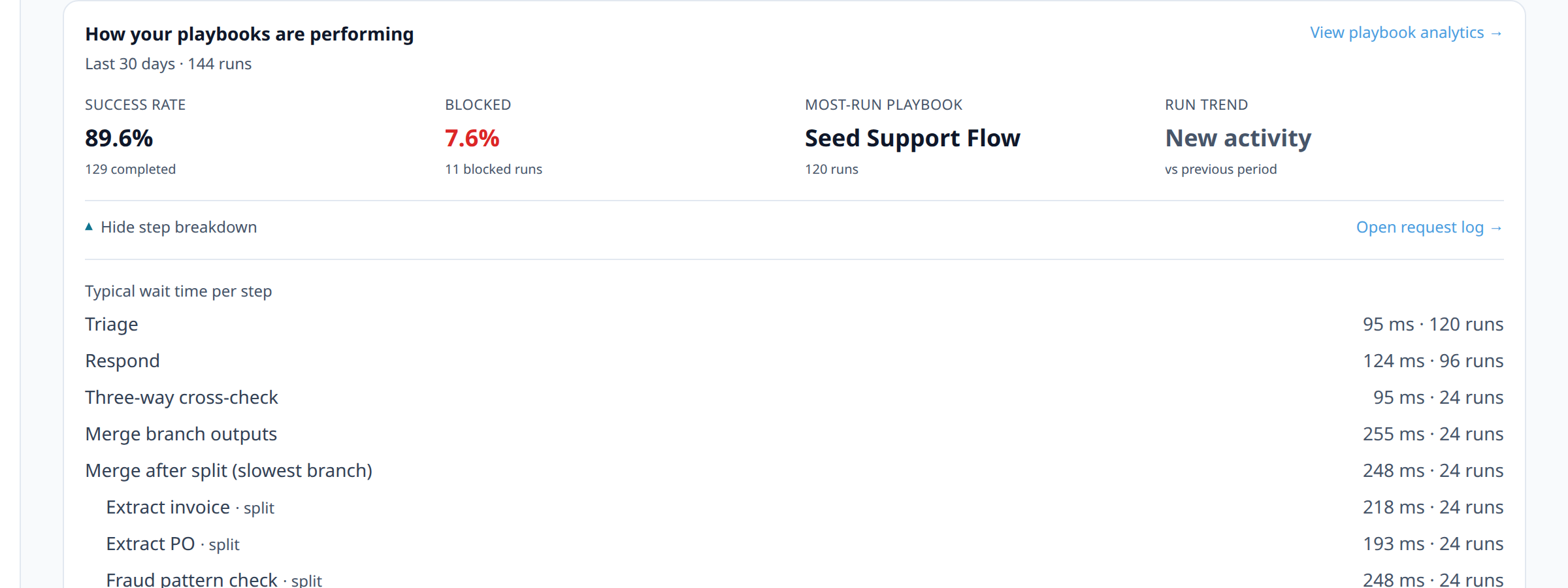

   Step 10: Publish and monitor the merge point specifically

   After going live, pay particular attention to the merge step's metrics in orchestration analytics. A merge node's latency is bounded by its slowest branch, so if one branch (say, a slow OCR-heavy invoice extraction) consistently lags, that's your actual latency bottleneck, not the merge itself.

4. 4Diagram / Flow

5. 5Configuration Examples

   Simplified orchestration template excerpt showing the fan-out/merge shape:

   id: vendor-invoice-three-way-match
   complexity: fan_out_merge
   min_executor: s16
   graph:
     entry_step_key: split
     steps:
       - step_key: split
         node_type: fan_out
       - step_key: extract_invoice
         node_type: agent
         agent_slug: "{{extract_invoice}}"
         input_mode: pass_through
       - step_key: extract_po
         node_type: agent
         agent_slug: "{{extract_po}}"
         input_mode: pass_through
       - step_key: fraud_check
         node_type: agent
         agent_slug: "{{fraud_check}}"
         input_mode: pass_through
       - step_key: join
         node_type: merge
         merge_mode: json_object
       - step_key: cross_check
         node_type: agent
         agent_slug: "{{cross_check}}"
         input_mode: append_previous
     routes:
       - from_step_key: join
         to_step_key: cross_check
         condition_type: always
       - from_step_key: cross_check
         to_step_key: approve_payment
         condition_type: on_validation_pass
         priority: 10
       - from_step_key: cross_check
         to_step_key: review_handoff
         condition_type: on_validation_block
         priority: 20
   ```

   **Example curl call and response headers:**

   ```bash
   curl -si "$VG_PROXY/v1/chat/completions" \
     -H "Authorization: Bearer $VG_API_KEY" \
     -H "X-VG-Flow: vendor-invoice-three-way-match" \
     -H "Content-Type: application/json" \
     -d '{"model":"openai/gpt-4o-mini","messages":[{"role":"user","content":"Invoice #4471, PO #9982, vendor Acme Supplies..."}]}'
   ```

   ```
   X-VG-Orchestration-Path: fan_out_extract > (extract_invoice | extract_purchase_order | fraud_pattern_check) > merge_extractions > cross_check > approve_payment
   X-VG-Target-Type: playbook

6. 6Testing and Verification

   1. Simulate routing check. In the Try it panel, confirm branch steps share the same parallel_group badge and all rejoin at the intended merge step. This confirms the graph shape is correct, though Simulate can't demonstrate actual concurrency (see Step 9).
   2. Single-branch failure test. Deliberately send an input that will fail validation in exactly one branch (e.g., a purchase order with a missing PO number) and confirm the merge node still waits for and receives the other two branches' outputs before the cross-check step runs.
   3. Orchestration analytics. After a few live runs, check Dashboard → Orchestration for step-level latency. Confirm the merge step's recorded latency roughly equals your slowest branch's latency, not the sum of all branches (which would indicate something is serializing unexpectedly).



7. 7Troubleshooting

   "My branches seem to run one after another, not in parallel." Check that all three branches are wired directly off the same fan_out node with condition_type: always and no accidental sequential dependency (e.g., branch B's input_mode set to append_previous, which would make it wait for branch A). All parallel branches should use pass_through unless you specifically intend one to depend on another, in which case it isn't a true fan-out candidate.

   "The merge step never triggers." Confirm every branch actually has a route reaching the merge node, including any conditional branches within a multi-step arm. If one internal branch step has a failure route that dead-ends without reaching the merge node, the merge will wait forever (or time out) for that branch.

   "One slow branch is dragging down the whole playbook." This is expected behavior (merge waits for the slowest branch by design), but it usually means that branch shouldn't be in the parallel group, or needs its own timeout/fallback route so a stuck branch doesn't block the others indefinitely. Consider adding a bounded timeout on the slowest branch with a fallback default value if it doesn't complete in time.

   "I'm hitting a concurrency limit and branches are queueing instead of running immediately." Check your plan's fan_out_max_parallel entitlement (see Step 8). If you routinely need more concurrent branches than your limit allows, consider whether some branches can be pre-computed outside the playbook (e.g., a fraud-pattern lookup against a fast internal API rather than an LLM call) rather than adding more LLM-backed parallel branches.

   "Costs went up more than I expected after switching to fan-out." Fan-out doesn't reduce the number of LLM calls. It only changes when they happen (concurrently instead of sequentially). If your total cost went up, check whether you accidentally duplicated a step across branches, or whether what used to be a single combined extraction call is now three separate calls each incurring their own base overhead.

8. 8Best Practices

   • Only fan out steps that are truly independent. If you're unsure whether two steps depend on each other, model them sequentially first, get correctness right, and parallelize afterward as a pure performance optimization.
   • Keep the branch count small and meaningful. Three to five branches is a sweet spot for most real workflows; if you're fanning out into a dozen tiny branches, consider whether some of them can be combined into a single agent call instead.
   • Put your slowest branch under scrutiny first, since it defines your merge latency floor. Often the best optimization isn't parallelizing more, it's speeding up (or replacing) the single slowest branch.
   • Design the merge/decision step to be resilient to partial data. If a branch is allowed to fail without blocking the whole playbook (via on_fail: warn inside that branch), make sure your cross-check step's logic explicitly handles a missing field rather than assuming all three branches always succeed.
   • Watch orchestration analytics after go-live, not just Simulate. Synthetic test data rarely reproduces the real-world latency skew you'll see across branches once traffic is diverse.

9. 9Advanced Options

   Nested fan-out. A branch coming out of a fan-out node can itself contain another fan-out/merge pair, useful for genuinely hierarchical parallel work (e.g., extracting from three documents, and within one of those branches, running two independent checks on the extracted data). Keep nesting shallow; deeply nested fan-out graphs become difficult to reason about and debug.

   Combining fan-out with sub-flows. Rather than inlining every branch's steps directly in the parent playbook, a branch can point at a sub_flow node referencing a separate, independently maintained playbook. This is useful when one branch's logic is complex enough to deserve its own versioned, independently tested playbook (for example, a full KYC sub-flow triggered as one branch of a larger onboarding fan-out).

   Partial-success routing. Rather than a binary "all branches must pass," you can route at the merge/decision step based on how many branches passed (using json_field_equals against a count you compute in the cross-check step), enabling policies like "auto-approve if 2 of 3 checks pass, otherwise escalate" instead of an all-or-nothing gate.

10. 10Summary and Next Steps

    Fan-out and merge let you model genuinely parallel work honestly, instead of forcing independent tasks into an artificial sequential chain. The mental model is simple: a fan-out node schedules concurrent branches from a shared input, a merge node waits for all of them and combines their outputs. The practical value shows up directly in latency. Three independent extraction calls running concurrently instead of back-to-back can meaningfully shorten your playbook's total execution time.

    From here, a natural next step is revisiting fallback logic with an eye toward what happens when exactly one branch inside a fan-out fails. Designing that partial-failure path deliberately, rather than discovering it in production, is what separates a fan-out playbook that's genuinely more resilient from one that's just faster until something breaks.
