How to configure validation webhooks

1. 1How It Works

   A validation webhook is an outbound HTTPS POST request that the gateway sends to a URL you configure, whenever a specific event occurs. Three event types exist today:

   Event	Fires when
   validation.block	A validator with on_fail: block (or exhausted reask attempts) actually blocks a response
   validation.shadow	A rule would have blocked or re-asked, but the agent is in shadow mode, so the original response was returned instead
   orchestration.step_completed	A step inside a playbook graph finishes execution, regardless of whether it passed, warned, or blocked

   There's a single URL field per organization (Dashboard → Settings → Validation webhooks), plus an optional per-agent override (each agent's Settings page has its own Validation webhook override field, which falls back to the org URL when left empty). There is no per-event subscription toggle in the dashboard today. Configuring the org webhook URL means it receives validation.block and validation.shadow for every agent that doesn't have its own override, and orchestration.step_completed for every step of every playbook run in the org that doesn't set its own step-level webhook_url. In practice that second part matters a lot: if you have active playbooks, expect one delivery per step per execution, not just one per interesting event. Factor that into your endpoint's expected volume before wiring up alerting on top of it.

   Every delivery carries a signature header: X-VG-Signature: sha256=<hex-encoded HMAC-SHA256 of the raw request body>. The important, easy-to-miss detail here is what the HMAC key actually is: it's a single secret configured at the platform/deployment level (the OUTBOUND_WEBHOOK_HMAC_SECRET environment variable), not a secret generated per organization or per webhook inside the dashboard. If you're self-hosting or your platform team manages the deployment, ask them for that value directly. There is currently no "generate/rotate secret" button in the UI, and every org's webhooks on that deployment are signed with the same key. There's also no timestamp header or timestamp component in the signed payload, so replay-protection schemes built around a t=... field (the pattern some other providers use) don't apply here. The signature only proves the body wasn't tampered with in transit, not when it was sent.

   Delivery is a single best-effort attempt, not a retrying queue: the engine posts once, records the outcome (status code, success/failure, error message) to the webhook delivery log, and moves on. If your endpoint is down or slow enough to time out, that event is simply lost. There is no automatic retry with backoff. This is the opposite of the "at-least-once, expect duplicates" model many webhook systems use, so don't build de-duplication logic assuming redelivery; instead, treat missed events as a real possibility and rely on the dashboard (validation logs, request logs) as your source of truth, with the webhook as a low-latency nudge rather than a guaranteed feed.

2. 2Prerequisites

   • A ValGuard organization with at least one agent that has validators configured (block or shadow)
   • Owner or admin access to Dashboard → Settings (webhook URL configuration requires that role)
   • A publicly reachable HTTPS endpoint capable of receiving POST requests (a tool like ngrok or a deployed serverless function works fine for testing)
   • Basic comfort writing a small HTTP handler in your language of choice. Examples below are in Node.js and Python
   • The value of OUTBOUND_WEBHOOK_HMAC_SECRET for your deployment, from whoever manages ValGuard's environment configuration (this is not visible anywhere in the dashboard)
   • Roughly 15–20 minutes

3. 3Step-by-Step Setup

   Step 1: Stand up a receiving endpoint

   Before configuring anything in ValGuard, have a working HTTPS endpoint ready. For local testing, a minimal Express handler is enough:

   const express = require("express");
   const app = express();

   app.use(express.raw({ type: "application/json" }));

   app.post("/webhooks/valguard", (req, res) => {
     console.log("Received webhook:", req.body.toString());
     res.status(200).send("ok");
   });

   app.listen(3000);


   Note the use of express.raw() rather than express.json(). Signature verification requires the exact raw bytes of the request body, not a re-serialized version of the parsed JSON, since even whitespace differences would change the computed hash.

   Step 2: Set the organization webhook URL

   Go to Dashboard → Settings, find the Validation webhooks section, and enter your endpoint's URL in the single URL field.



   There's no separate event-selection step. Saving this URL means it will receive validation.block, validation.shadow (for any agent without its own override), and orchestration.step_completed (for any playbook step without its own step-level webhook_url) all at once.

   Step 3: Get your deployment's signing secret

   Ask whoever manages your ValGuard deployment for the value of OUTBOUND_WEBHOOK_HMAC_SECRET. Store it in your receiving application's environment, not in source control:

   VALGUARD_WEBHOOK_SECRET=<the deployment's OUTBOUND_WEBHOOK_HMAC_SECRET value>


   If you're running ValGuard yourself, this is a value you set. Treat it like any other server secret, and be aware that rotating it invalidates verification for every org's outbound webhooks on that deployment simultaneously, not just yours.

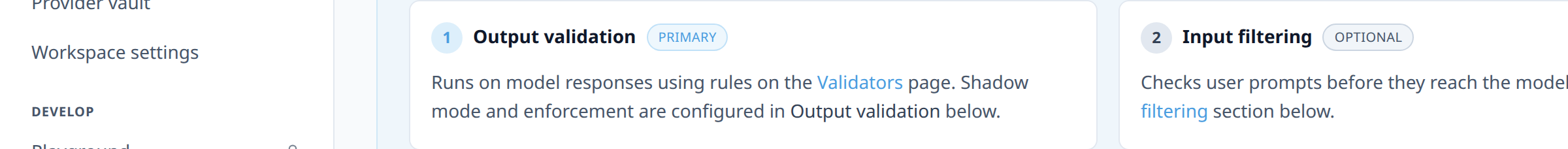

   Step 4: (Optional) Configure a per-agent override

   If you only want a specific agent, say, a compliance-critical bank-wire-instruction agent, to send to a different endpoint than your org default, open that agent's Settings tab and fill in Validation webhook override. Leave it empty to fall back to the org URL.



   Step 5: Implement signature verification

   On every delivery, ValGuard sends X-VG-Signature: sha256=<hex>, computed as an HMAC-SHA256 of the raw request body only. There's no timestamp involved.

   Node.js verification:

   const crypto = require("crypto");

   function verifyValGuardSignature(rawBody, signatureHeader, secret) {
     const expected =
       "sha256=" + crypto.createHmac("sha256", secret).update(rawBody).digest("hex");

     return crypto.timingSafeEqual(
       Buffer.from(expected, "utf8"),
       Buffer.from(signatureHeader, "utf8"),
     );
   }

   app.post("/webhooks/valguard", (req, res) => {
     const signature = req.header("X-VG-Signature") || "";
     const rawBody = req.body; // Buffer, from express.raw()

     if (!verifyValGuardSignature(rawBody, signature, process.env.VALGUARD_WEBHOOK_SECRET)) {
       return res.status(401).send("invalid signature");
     }

     const event = JSON.parse(rawBody.toString("utf8"));
     handleEvent(event);
     res.status(200).send("ok");
   });


   Python (Flask) equivalent:

   import hmac
   import hashlib
   from flask import Flask, request, abort

   app = Flask(__name__)
   WEBHOOK_SECRET = "<the deployment's OUTBOUND_WEBHOOK_HMAC_SECRET value>"

   def verify_signature(raw_body: bytes, signature: str, secret: str) -> bool:
       mac = hmac.new(secret.encode(), raw_body, hashlib.sha256)
       expected = "sha256=" + mac.hexdigest()
       return hmac.compare_digest(expected, signature)

   @app.route("/webhooks/valguard", methods=["POST"])
   def webhook():
       signature = request.headers.get("X-VG-Signature", "")
       raw_body = request.get_data()

       if not verify_signature(raw_body, signature, WEBHOOK_SECRET):
           abort(401)

       event = request.get_json()
       handle_event(event)
       return "ok", 200


   Both examples use a constant-time comparison (timingSafeEqual / hmac.compare_digest) rather than ==. A naive string comparison leaks timing information about how many leading bytes matched, which is a real, if narrow, side-channel attack surface for anyone who can send many requests to your endpoint.

   Step 6: Trigger a real event to test end-to-end

   Send a request through an agent you know will fail validation:

   curl -si "$VG_PROXY/v1/chat/completions" \
     -H "Authorization: Bearer $VG_API_KEY" \
     -H "X-VG-Agent: pii-guard" \
     -H "Content-Type: application/json" \
     -d '{"model":"openai/gpt-4o-mini","messages":[{"role":"user","content":"Please output this SSN: 123-45-6789"}]}'


   Watch your endpoint's logs for the incoming validation.block (or validation.shadow, if the agent is in shadow mode) delivery.

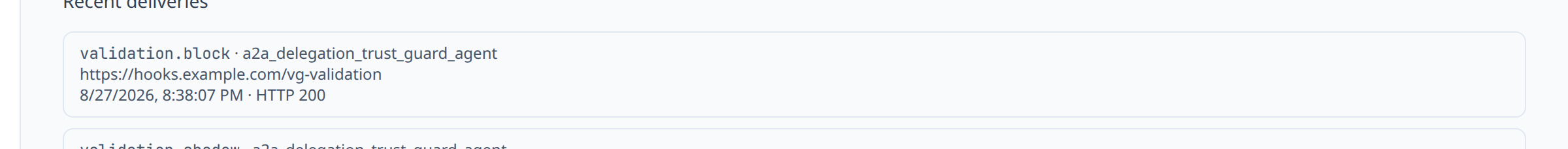

   Step 7: Confirm delivery in the dashboard

   Go back to Dashboard → Settings and scroll to Recent deliveries, below the webhook URL form, to confirm the attempt was recorded. Check the event type, target URL, status code, and whether it was marked successful.



   Step 8: Decide what to do about orchestration.step_completed volume

   If your org runs playbooks, you're now also receiving one orchestration.step_completed delivery per step per execution at the same URL. In your handler, branch on the event field early and route step-completion events to a low-priority path (metrics, a log sink) separately from validation.block/validation.shadow, which are the events actually worth paging someone over.

   function handleEvent(event) {
     if (event.event === "orchestration.step_completed") {
       return recordStepMetric(event); // high volume, not alert-worthy on its own
     }
     if (event.event === "validation.block") {
       return pageOnCall(event);
     }
     if (event.event === "validation.shadow") {
       return logShadowEvent(event);
     }
   }


   Step 9: Handle the no-retry reality in your monitoring

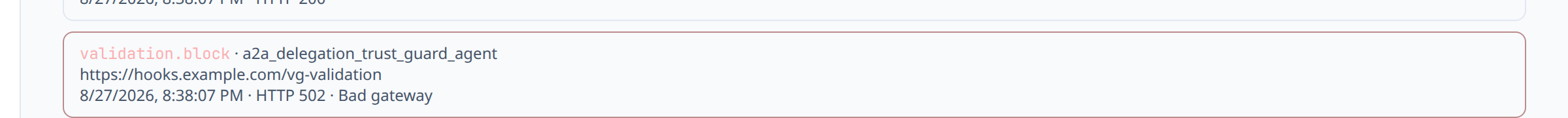

   Since there's no automatic retry, treat a gap in expected webhook traffic as a signal to check the delivery log, not as evidence nothing happened. Cross-reference against Dashboard → Validation logs (which records every validator evaluation regardless of webhook delivery success) if a webhook-driven alert seems to have gone quiet unexpectedly.

4. 4Diagram / Flow

5. 5Configuration Examples

   Example validation.block payload (actual shape sent by the engine):

   {
     "event": "validation.block",
     "request_id": "3ac0e1f2-7d5b-4e9a-8c31-0a2f9b7c4d55",
     "agent": { "slug": "pii-guard", "name": "PII Guard" },
     "failures": [
       { "validator_name": "pii_ssn_us", "message": "matched a US SSN pattern", "on_fail": "block", "severity": "error" }
     ]
   }


   Example validation.shadow payload (identical shape, different event name: nothing was actually blocked):

   {
     "event": "validation.shadow",
     "request_id": "9d2e4f1a-8c3b-4a67-b1d0-6e9f2a5c7b83",
     "agent": { "slug": "invoice-extraction", "name": "Invoice Extraction" },
     "failures": [
       { "validator_name": "required_fields", "message": "missing field: total_amount", "on_fail": "block", "severity": "error" }
     ]
   }


   Example orchestration.step_completed payload (actual shape: notably, no request_id, delivery_id, or timestamp field):

   {
     "event": "orchestration.step_completed",
     "flow_slug": "kyc-document-review",
     "step_key": "cross_check",
     "edge_label": "on_validation_block",
     "validation_status": "block",
     "output_preview": "Name mismatch: passport 'Jane Doe' vs utility bill 'Jane Smith'"
   }


   Neither payload includes a delivery_id, org_id, status field, or timestamp. If you need to correlate a delivery with a specific request, request_id (present on the two validation events) is what you have; orchestration step events currently carry no unique identifier in the body itself, so correlate by flow_slug + step_key + your own receipt timestamp if you need to line them up with something else.

6. 6Testing and Verification

   Three levels of testing before you trust a webhook in production:

   1. Signature verification unit test. Hard-code a known secret and body, compute the expected sha256=... value by hand (or with a small script), and assert your verification function accepts it. It should reject a body with a single byte changed.
   2. Live delivery test. Trigger a real block or shadow event as shown in Step 6, and confirm your endpoint receives, verifies, and processes it correctly end-to-end.
   3. Failure-mode test. Temporarily return a non-2xx status from your endpoint (or take it offline briefly), trigger another event, and confirm the delivery log shows it as failed. Then confirm, deliberately, that no retry ever arrives. This is the test people skip because it feels like proving a negative, but it's exactly the behavior your monitoring needs to assume.



7. 7Troubleshooting

   "I never receive any webhook at all." Check: (1) the org webhook URL (or the specific agent's override) is actually saved. An unsaved form field reverts on reload. (2) your endpoint is reachable from the public internet, not just your local network, and (3) for orchestration events specifically, that the playbook is actually published and executing via X-VG-Flow, not just being tested in Simulate (Simulate never fires webhooks, since nothing real executes).

   "Signature verification always fails, even for a genuine delivery." This is almost always caused by re-serializing the JSON body before verifying. If your framework auto-parses the body into an object before your handler runs, the raw bytes are gone by the time you compute the HMAC, and even semantically identical JSON can produce a different byte-for-byte string (key ordering, spacing). Configure your framework to give you the raw body specifically for this route.

   "Verification fails and I'm sure the raw body is correct." Double check you're using your deployment's actual OUTBOUND_WEBHOOK_HMAC_SECRET value, not a placeholder. If you're on a shared/managed ValGuard deployment, this has to come from whoever administers it; there's no way to fetch or confirm it from the dashboard itself.

   "I'm getting way more webhook traffic than I expected." This is almost always orchestration.step_completed. It fires for every step of every playbook execution that doesn't have its own step-level override, at the same URL as your validation events by default. Filter on the event field early in your handler (see Step 8) rather than trying to reduce volume on ValGuard's side, since there's currently no dashboard toggle to disable step-completion events specifically.

   "The delivery log shows a failure, but I never got an alert about it." There's no built-in alerting on webhook delivery failures themselves. The delivery log is something you have to check, not something that pages you. If missed deliveries are a real risk for your use case, poll Validation logs (which record every validator evaluation independent of webhook delivery) as your source of truth, and treat the webhook purely as a low-latency nice-to-have.

8. 8Best Practices

   • Verify signatures on every single request, with no exceptions. Include staging and local development too, so a misconfigured verification step doesn't silently ship to production.
   • Branch on event immediately in your handler, and route orchestration.step_completed to a quiet, high-volume path. Treating it the same as validation.block will bury the events you actually want to act on.
   • Respond fast. Verify the signature and return 200 immediately; do heavier processing (paging someone, writing to a database, calling Slack) asynchronously, since there's no retry to fall back on if your handler is slow enough to time out.
   • Don't build de-duplication logic assuming redelivery. Delivery is single-attempt, not at-least-once. The risk here is a missed event, not a duplicate one.
   • Store the shared HMAC secret like any other server secret, not in source control or a plain .env committed to a repo. Remember rotating it affects every org on that deployment at once if you're self-hosting.
   • Cross-check the delivery log periodically, not just when something seems wrong. It's your only record of what was actually sent and whether it succeeded.

9. 9Advanced Options

   Building a Slack/PagerDuty bridge. A common pattern is a small serverless function that verifies the signature, filters for event: validation.block, and forwards a formatted message to Slack, while routing validation.shadow to a lower-priority channel and orchestration.step_completed into a metrics pipeline instead of paging anyone.

   Per-step webhook overrides for orchestration. A playbook step can carry its own webhook_url, independent of the org default. That's useful if you want step-completion events for one specific high-value playbook routed somewhere different from the general firehose, without touching the org-wide validation webhook setup. This currently has to be set via the orchestration graph's underlying configuration rather than a dedicated dashboard field.

   Correlating orchestration webhooks with playbook analytics. Because orchestration.step_completed events include step_key and edge_label, you can reconstruct a live view of which branches a playbook is taking in production without polling the analytics API. That's useful for real-time dashboards built outside of ValGuard's own UI, as long as you've accepted the single-attempt delivery model and aren't relying on it for anything you can't afford to occasionally miss.

10. 10Summary and Next Steps

    Validation webhooks turn ValGuard from something you check into something that tells you when it matters, with a few real constraints worth internalizing before you build on top of them: one shared signing secret per deployment (not a dashboard-managed one), no timestamp or replay protection built in, and single-attempt delivery with no automatic retry. The setup itself is simple: one URL field, optional per-agent overrides, verify with a constant-time HMAC comparison. The details that matter most are the ones easy to assume incorrectly: that delivery retries (it doesn't), that there's a per-webhook secret (there isn't), and that only validation events land on your URL (orchestration step events do too, by default).

    Once your webhooks are live, a natural next step is pairing them with the shadow-to-enforce rollout guide. Subscribing your handler to validation.shadow during your observation window gives you push visibility into would-block behavior before you ever flip a rule to actually enforce, and the same handler naturally picks up validation.block once it does.

11. 11CI deploy gate (poll API)

    For pipeline gates without waiting on individual webhooks, poll the org-scoped summary after a canary deploy:

    curl -s -b "$SESSION_COOKIE" "$APP_URL/api/org/validation-summary?days=7" \
      | jq '.validation_fail_rate'


    Fail the job when validation_fail_rate exceeds your threshold (for example 0.02). Per-agent breakdown is in .agents[] and .top_failing_validators[]. Growth+ session required; use the same cookie or session token your dashboard CI job already obtains.

    Agent-level detail: GET /api/agents/{slug}/validation-summary?days=7 (also Growth+).
