How to roll out shadow mode safely

1. 1How It Works

   To understand shadow mode, it helps to understand what happens to a request without it first.

   Every request sent through the gateway with an X-VG-Agent header goes through the same pipeline: the engine forwards your prompt to the upstream LLM, receives the completion, and then runs every enabled validator attached to that agent against the response, in priority order. Each validator has an on_fail setting that decides what happens when it fails:

   • block: the request is rejected before it reaches your application (HTTP error or a valid: false envelope, depending on your agent's failure mode setting)
   • reask: the engine automatically retries the upstream call, up to max_reasks times, hoping the model self-corrects
   • warn / pass: the failure is logged, but the response is still returned
   • log: a per-rule shadow setting; the failure is recorded but explicitly excluded from block-rate and fail-rate metrics

   Shadow mode operates one level above all of this. When an agent has shadow_mode: true, every validator still runs exactly as configured, including any set to block or reask, but after the validation pass completes, the engine strips out the actual blocking behavior. Concretely, the engine clears the Blocked and ShouldReask flags before the response is returned to the caller. The upstream model's original answer always reaches your application, untouched.

   What you get back changes in an observable way, though:

   • The request's status in the audit log (Dashboard → Requests) becomes shadow instead of ok
   • The response includes an X-VG-Shadow-Mode: true header and X-VG-Validation-Status: shadow (the header's normal values are pass, warn, block, or shadow. Note the header uses pass, while the audit-log status field uses ok; they're two related but separately-named fields)
   • If a webhook is configured, a validation.shadow event fires with the same payload shape a validation.block event would have, except nothing was actually blocked
   • Aggregate counters (shadow_count, shadow_would_block_approx) accumulate on your daily agent stats, giving you a projected block rate

   In other words: shadow mode doesn't change what is validated. It changes only the consequence of a failed validation. This is the key mental model: you are never testing a "lighter" version of your rules. You are testing the exact rules you're about to enforce, against exact production traffic, with the safety net fully deployed.

2. 2Prerequisites

   Before starting, make sure you have:

   • A ValGuard account with at least one API key (vg_live_... or a test key)
   • Access to the dashboard at /dashboard/agents
   • An agent already created, either a fresh one from a preset, or an existing production agent you want to add new rules to
   • A basic understanding of your own request volume. You'll want at least a few hundred real requests to draw meaningful conclusions from shadow data, so a very low-traffic agent will need a longer observation window
   • (Optional, but recommended) A webhook endpoint capable of receiving POST requests, for real-time shadow alerts

   You do not need Growth-tier analytics for this tutorial. Shadow mode itself is available on every plan; only some of the deeper analytics dashboards used for observation are plan-gated.

3. 3Step-by-Step Setup

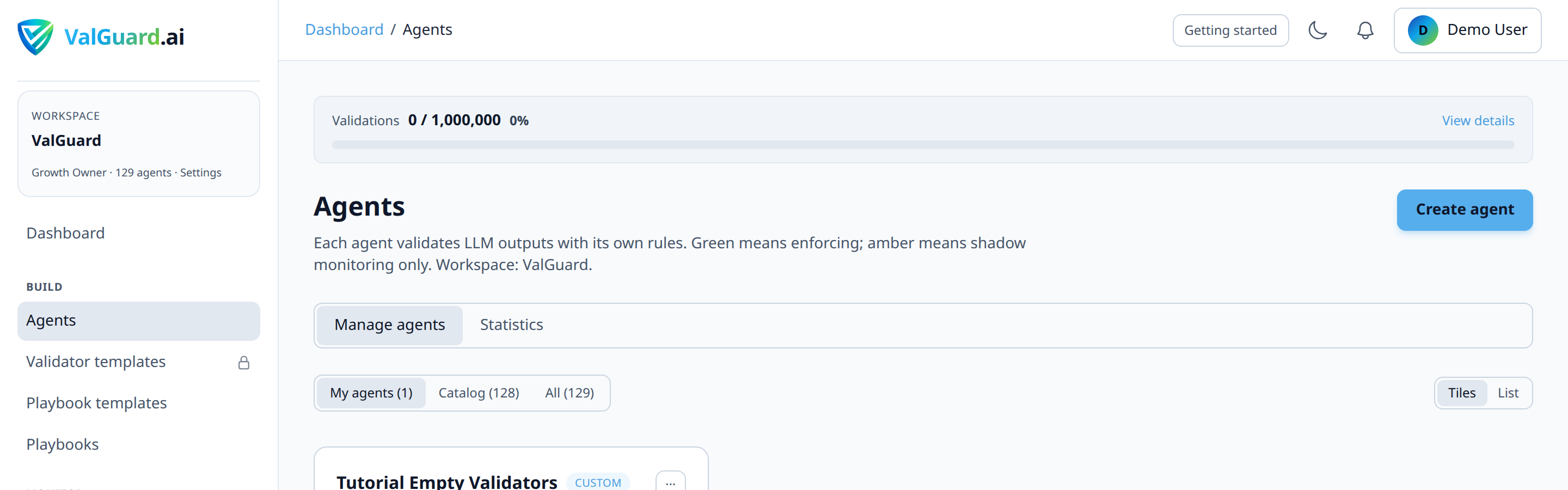

   Step 1: Create or open the agent

   Go to Dashboard → Agents and either create a new agent from a preset (for example pii-guard or invoice-extraction) or open an existing one you want to roll new rules into.

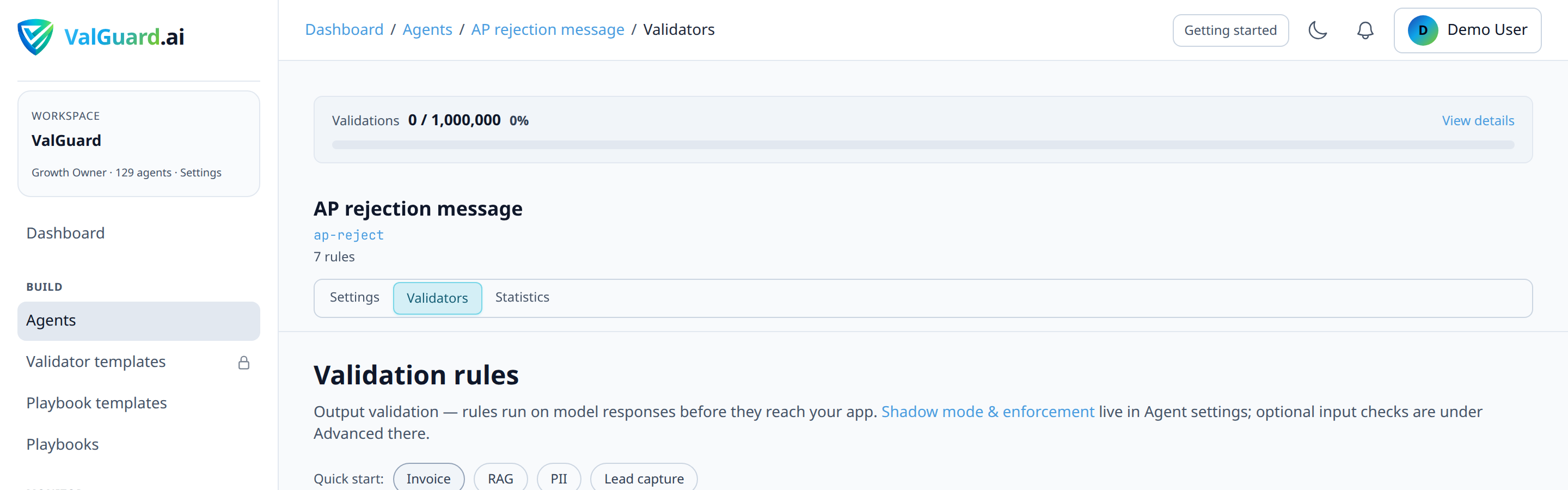

   Step 2: Add or confirm your validators

   Open the agent's Validators tab. Add the rules you want to test. For this walkthrough, assume you're adding a pii_detection rule and a required_fields schema check, both set to on_fail: block.



   It's important that you configure these rules exactly as you intend to run them in production. Do not weaken them "just for testing." The entire point of shadow mode is to validate your real configuration against real traffic.

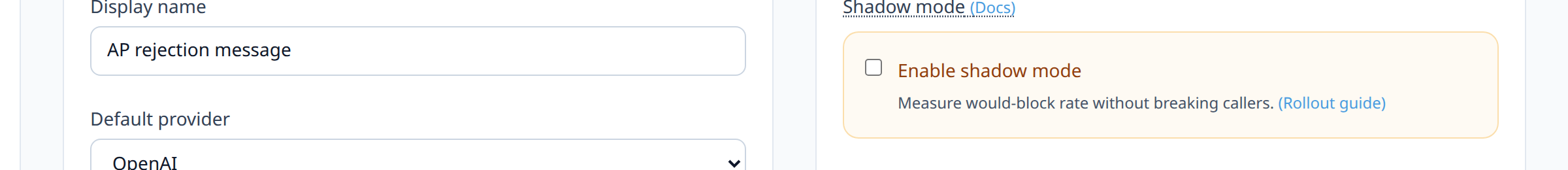

   Step 3: Enable shadow mode

   In Agent Settings, find the Shadow mode toggle and switch it on. Save the agent.



   At this point, nothing about your application's behavior has changed. Every request will still return the model's raw answer.

   Step 4: Point real traffic at the agent

   If this is a brand-new agent, update your application to send requests through it:

   curl -si "$VG_PROXY/v1/chat/completions" \
     -H "Authorization: Bearer $VG_API_KEY" \
     -H "X-VG-Agent: invoice-extraction" \
     -H "Content-Type: application/json" \
     -d '{
       "model": "openai/gpt-4o-mini",
       "messages": [{"role": "user", "content": "Extract fields from this invoice: ..."}]
     }'


   If you're adding new rules to an existing production agent, you don't need to change anything on the application side. The new rules simply start running in shadow the moment you save the agent settings.

   Step 5: Watch the response headers

   Every response from a shadow-mode agent includes:

   X-VG-Shadow-Mode: true
   X-VG-Validation-Status: shadow
   X-VG-Request-Id: 8f2a1c9e-...


   If a request would have been blocked in enforce mode, X-VG-Validation-Status will read shadow (rather than pass) even though the body returned is the model's original completion.

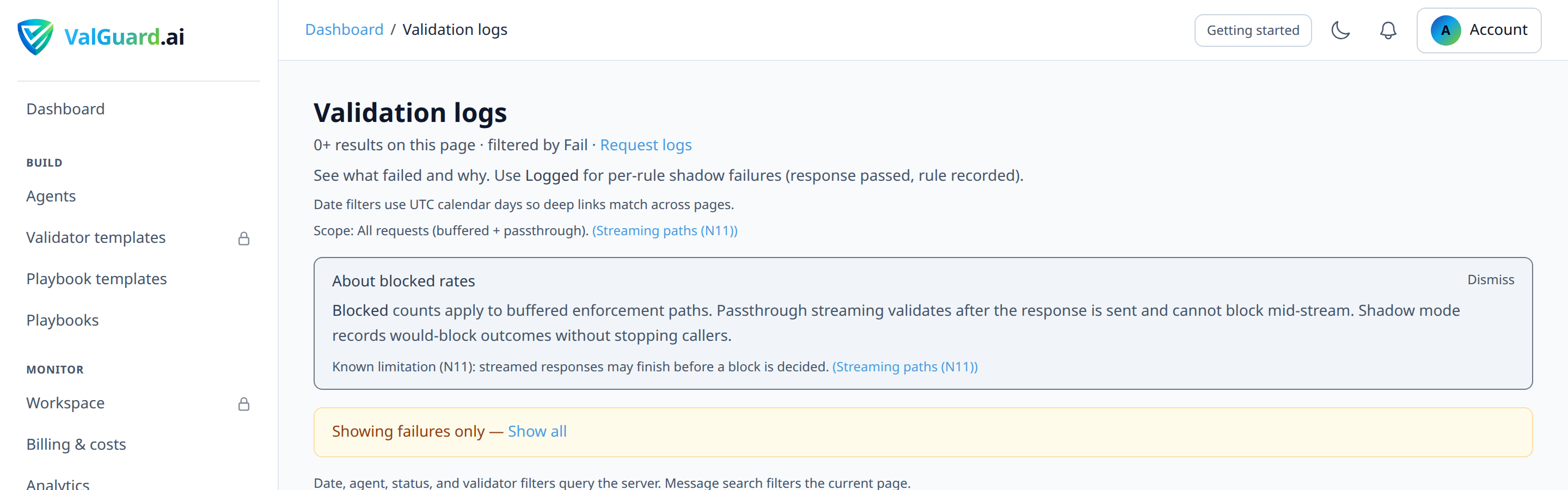

   Step 6: Let it run and observe the dashboard

   Go to Dashboard → Validation logs and filter by agent and by status shadow. This view shows you, request by request, which rule would have fired and why.



   Give this at least 48–72 hours for a low-to-medium traffic agent, or until you've accumulated a few hundred shadow events, enough to see patterns rather than one-off noise.

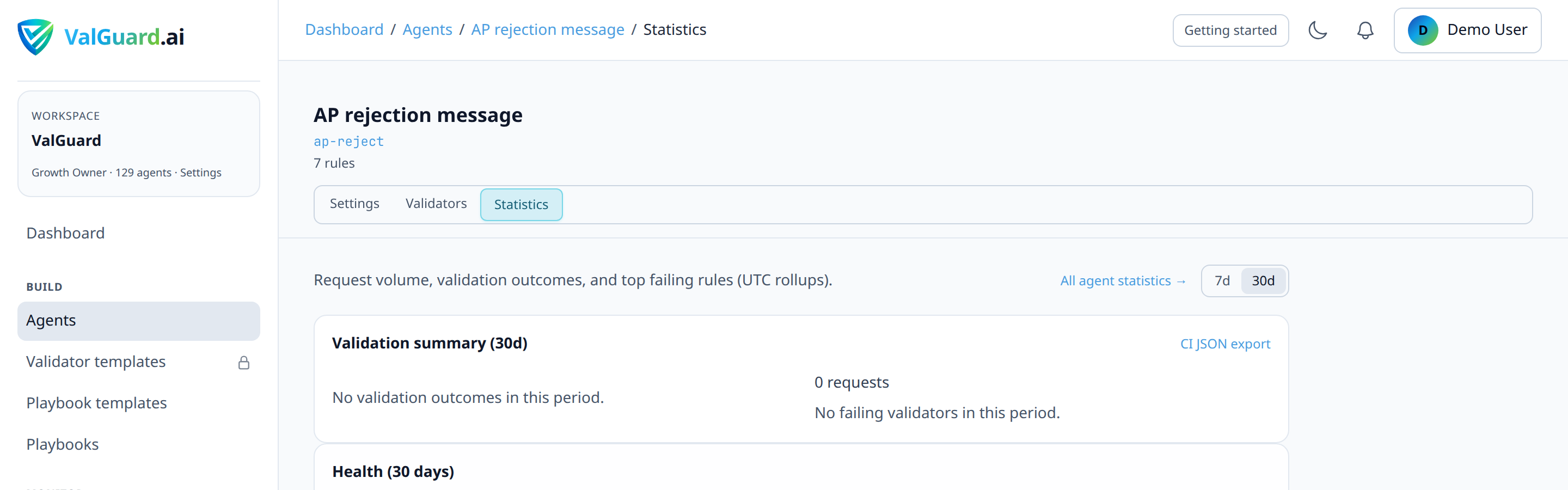

   Step 7: Read the aggregate numbers

   Head to Dashboard → Analytics (or the agent's overview card) and look for:

   • Shadow count: total requests that ran through shadow mode
   • Shadow would-block rate: the percentage of those requests that would have been blocked or re-asked if enforcement were on

   This projected block rate is the single most important number in this whole process. A well-tuned rule set on stable traffic usually settles at a low, boring block rate (low single-digit percent). A spike, or a rate above what you'd consider acceptable, is your signal to go back and adjust before enabling enforcement.



   Step 8: Investigate and tune false positives

   For each distinct failure reason showing up in the shadow logs, open a few example requests and ask: is this a real problem the rule should catch, or is the rule too strict? Common tuning actions:

   • Loosen a regex or widen an enum's allowed values
   • Change a rule's severity from error to warn if it's informative but not a real blocker
   • Move a borderline rule to on_fail: log (per-rule shadow) instead of block, so it keeps logging without affecting your would-block metric
   • Add an exception field to a required_fields check if certain valid response shapes were never accounted for

   Re-save the agent after each change and keep observing. Shadow mode doesn't need to be re-enabled, it just keeps running.

   Step 9: Set up an alert for the transition

   Before flipping to enforce, configure a validation webhook (see the companion tutorial on validation webhooks) subscribed to validation.block. Once you disable shadow mode, this is the event that fires for real blocks, and you want to know immediately if the volume looks different from what shadow predicted.

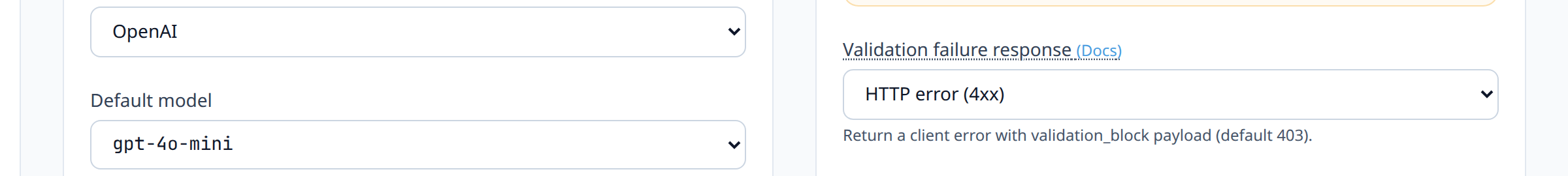

   Step 10: Flip to enforce

   When your would-block rate has been stable and acceptable for your observation window, open Agent Settings again and turn Shadow mode off. Save.



   From this point forward, the exact same rules that were only logging in shadow will now actually block or re-ask. Nothing else about the rule configuration changes. That consistency is the whole reason shadow mode is trustworthy as a rollout tool.

   Step 11: Monitor closely for the first hours

   Watch Dashboard → Requests and your webhook delivery log closely for the first few hours after enforcement. Compare the real block rate against the projected shadow rate. They should be close. If they diverge significantly, see Troubleshooting below.

4. 4Configuration Examples

   Agent settings payload (conceptual shape used by the dashboard):

   {
     "slug": "invoice-extraction",
     "shadow_mode": true,
     "max_reasks": 1,
     "log_level": "metadata",
     "validation_fail_mode": "http_error",
     "validators": [
       {
         "name": "required_fields",
         "enabled": true,
         "priority": 10,
         "severity": "error",
         "on_fail": "block",
         "params": { "fields": ["invoice_number", "total_amount", "vendor_name"] }
       },
       {
         "name": "pii_detection",
         "enabled": true,
         "priority": 20,
         "severity": "warn",
         "on_fail": "log",
         "params": {}
       }
     ]
   }


   Notice the pii_detection rule above uses per-rule shadow (on_fail: log) even independently of the agent-level shadow_mode flag. This is a useful pattern once you've graduated some rules to enforcement and want to keep rolling out others more conservatively (more on this in Advanced Options).

   Example response headers while in shadow mode:

   HTTP/1.1 200 OK
   X-VG-Shadow-Mode: true
   X-VG-Validation-Status: shadow
   X-VG-Latency-ms: 842
   X-VG-Request-Id: 8f2a1c9e-4b7d-4a11-9c2e-1f6a9d3e2b10
   Content-Type: application/json


   Example response headers after enforcement is enabled, for a request that fails validation:

   HTTP/1.1 403 Forbidden
   X-VG-Validation-Status: block
   X-VG-Request-Id: 3ac0e1f2-7d5b-4e9a-8c31-0a2f9b7c4d55
   Content-Type: application/json

   {
     "error": {
       "type": "validation_block",
       "reason": "required_fields",
       "message": "response blocked by validation policy",
       "details": {
         "failures": [
           { "validator_name": "required_fields", "message": "Missing required field: total_amount", "on_fail": "block", "severity": "error" }
         ]
       }
     }
   }


   The 403 here is the default; it's configurable per agent via validation_fail_status to any 4xx code except 429.

5. 5Testing and Verification

   There are three independent ways to confirm shadow mode is behaving correctly before you trust it:

   1. Header inspection. Send a deliberately malformed test prompt (one you know should fail your rule) through the shadow-mode agent and confirm the response still contains the model's real answer, along with X-VG-Validation-Status: shadow.
   2. Validation logs. Confirm the same request shows up in Dashboard → Validation logs with status: shadow and the correct validator_name.

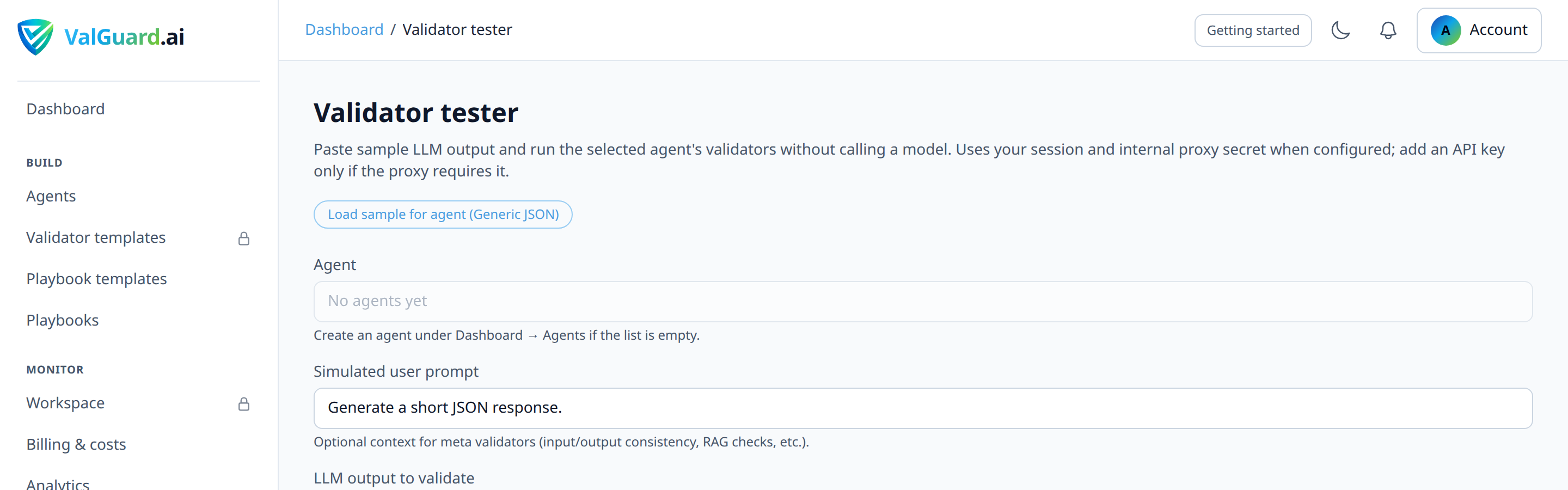

   3. Internal validator tester (no live traffic required). If you have access to the validator tester in Dashboard → Develop → Validator tester, you can run a rule against a sample payload directly, useful for confirming a rule's logic in isolation before it ever sees real traffic.



   Only move on to enforcement once all three checks are consistent with what you expect.

6. 6Troubleshooting

   "I don't see X-VG-Shadow-Mode in the response at all." Check that the request actually went through the agent you enabled shadow on. Confirm the X-VG-Agent header value matches the agent slug exactly, and that you saved the agent settings after toggling shadow mode (unsaved toggles revert on page reload).

   "Shadow would-block rate shows 0% even though I know my test cases should fail." This usually means your validator's params don't match the shape of your real production data. Use the validator tester against a real sample response, not a synthetic one, to confirm the rule triggers as expected.

   "The real block rate after enabling enforcement is much higher than the shadow rate predicted." The most common cause is a change in traffic composition between your observation window and go-live, for example, if you observed shadow data mostly during business hours but enforcement went live before a batch job with different input patterns ran overnight. Re-enable shadow mode temporarily, extend your observation window to cover a full traffic cycle (including weekly patterns), and re-check.

   "Metrics on the dashboard seem to lag behind what I see in the raw logs." Aggregate counters like shadow_would_block_approx are updated by hourly reconciliation jobs, not in real time. For up-to-the-minute visibility, rely on the raw validation logs view rather than the summary cards while you're actively tuning.

   "I flipped to enforce and now need to roll back immediately." Re-enable shadow mode. This is a single toggle and takes effect instantly for new requests. There is no need to remove or disable the validators themselves; shadow mode is designed to be a fast, reversible safety switch specifically so you can roll back without touching your rule configuration.

7. 7Best Practices

   • Never weaken a rule "for the shadow test." Test your real configuration, or the data you collect is meaningless once you enforce the real one.
   • Set a minimum observation window, not just a request count. Traffic patterns vary by day of week and time of day; a rule that looks fine over a Tuesday afternoon might behave differently on a high-volume Monday morning.
   • Roll out per-agent, not organization-wide. If you manage several agents, promote them from shadow to enforce independently, starting with your lowest-risk or lowest-traffic agent to build confidence in the process itself.
   • Pair shadow mode with a webhook from day one. Even before you turn on enforcement, subscribing to validation.shadow gives you push notifications instead of requiring you to poll the dashboard.
   • Document your go/no-go criteria before you start, not after you see the numbers (e.g. "would-block rate under 2% for 5 consecutive days") so the decision to enforce isn't made reactively under time pressure.
   • Keep a rollback runbook, even if it's just "toggle shadow mode back on and post in #incidents." The value of shadow mode as a safety net depends on your team knowing, without hesitating, that this switch exists.

8. 8Advanced Options

   Layered rollout with per-rule shadow. Once an agent is in full enforce mode, you can still stage the rollout of a new rule added to it by setting that one rule's on_fail to log first, independent of the agent-level shadow flag. This gives you shadow-mode behavior scoped to a single rule rather than the whole agent, useful when an agent already has trusted, enforced rules and you don't want to lose that protection while testing one new addition.

   Combining shadow mode with orchestration. Shadow mode is a per-agent setting, not a per-playbook one. If an agent is used as a step inside a multi-step playbook, enabling shadow on that agent means the step's validation failures won't trigger on_validation_block routing in the graph. The playbook will proceed down the "pass" path even on a shadow failure. Keep this in mind when rolling out validation inside orchestration: a step you intend to gate on should generally not be left in shadow mode once the playbook is live, or you'll silently lose your routing logic.

   Correlating shadow data with cost. Because shadow mode still runs the full validator pipeline, you can use blocked_cost_micro_total-style metrics as a preview of Spent on blocked (upstream $ that would still have been paid on requests your rules would block once enforced), useful for stakeholders, and distinct from any client-owned "cost avoided" methodology.

9. 9Summary and Next Steps

   Shadow mode turns "will this validator break production?" from a guess into a measured, reversible experiment. The rules run exactly as configured, real traffic flows through untouched, and you get concrete would-block metrics to decide when, not whether, to enforce. The rollout pattern is always the same: configure for real, observe long enough to see real patterns, tune based on evidence, and only then flip the switch, with a rollback that's a single toggle away.

   From here, two natural next steps: set up validation webhooks so you get pushed alerts the moment you go live with enforcement instead of having to watch a dashboard, and explore budget alerts so that once your validators are catching bad completions, you also have visibility into the cost of the retries those reask rules can trigger.
